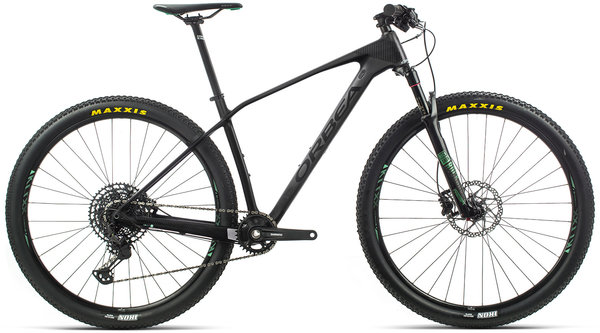

Orbea Alma M30

Orbea Alma M30
  • Color: Black
  • Color: Green/Gold
  • Color: Red/Black
Please select options


Alma is for the the quickest lap times and the steepest climbs. Alma is for the strongest accelerations and highest altitudes. Alma is for the biggest stages, the loudest fans, and the toughest riders. Alma is for the fiercest competitors, the athletes who accept nothing less than superlatives.

Refinements of Alma’s World Cup Geometry reflect the evolution of elite racing, like a slacker head angle (69.3º/69.5º) that provides stability on increasingly demanding tracks. A steeper seat angle and lower stack height increase handling precision and pedaling efficiency, and shorter (420/430mm) chainstays deliver maximum agility without instability. Orbea also engineered a natural flex point into the top tube by adding a fourth bend. This minimizes the effects of cornering stress and terrain impacts on traction and stability, resulting in an efficient, smooth, controlled ride that feels like floating over rough terrain.

And, instead of trying to squeeze everybody onto a single wheel size, Orbea offers Big Wheels Concept (BWC), which results in four frame sizes and two wheel sizes – Small and Medium frames with 27.5-inch wheels, and Small, Medium, Large, and X-Large frames with 29-inch wheels.

- Orbea Alma Carbon OMP Boost frame
- RockShox Reba RL suspension fork
- Mach1 Klixx 23 Tubeless Ready wheelset
- 12-speed Shimano SLX components
- Shimano hydraulic disc brakes


Frame Orbea Alma Carbon OMP, Boost, Press Fit, Taper
Fork RockShox Reba RL, 100mm, Air
Headset Acros Alloy 1-1/8 - 1-1/2-inch Integrated
Axles Front: 110x15mm
Rear: 148x12mm
Rims/Wheels Mach1 Klixx 23 Tubeless Ready
Tires Maxxis Ikon 2.20-inch FB 60 TPI Dual
Crankset Shimano MT610
Chainrings 32T
Chain Shimano M7100
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Rear Cogs Shimano SLX M7100 10-51T 12-Speed
Shifters Shimano SLX M7100
Handlebars OC1 Flat 31.8mm 740mm
Stem Alloy 31.8mm interface 7º
Brakes Shimano MT501 Hydraulic Disc
Saddle Selle Royal Seta Sport
Seat Post Race Face Ride 27.2x375mm

* Subject to change without notice.


Part Numbers

Option UPC MPN Store SKU
Black / Small / 27.5-inch 08434446569319 K22416DI
Black / Small / 29-inch 08434446570575 K23216DI
Black / Medium / 27.5-inch 08434446569340 K22418DI
Black / Medium / 29-inch 08434446570605 K23218DI ALM15556698K
Black / Large / 29-inch 08434446570636 K23219DI
Black / X-Large / 29-inch 08434446570667 K23221DI
Green/Gold / Small / 27.5-inch 08434446569326 K22416MV
Green/Gold / Small / 29-inch 08434446570582 K23216MV
Green/Gold / Medium / 27.5-inch 08434446569357 K22418MV ALM16170028L
Green/Gold / Medium / 29-inch 08434446570612 K23218MV
Green/Gold / Large / 29-inch 08434446570643 K23219MV
Green/Gold / X-Large / 29-inch 08434446570674 K23221MV
Red/Black / Small / 27.5-inch 08434446569333 K22416MW
Red/Black / Small / 29-inch 08434446570599 K23216MW ALM16145606K
Red/Black / Medium / 27.5-inch 08434446569364 K22418MW
Red/Black / Medium / 29-inch 08434446570629 K23218MW
Red/Black / Large / 29-inch 08434446570650 K23219MW
Red/Black / X-Large / 29-inch 08434446570681 K23221MW
