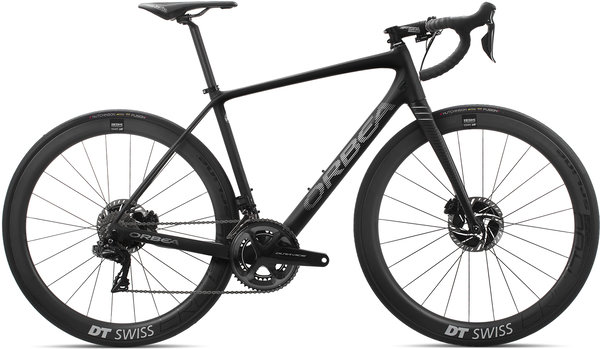

Orbea Avant M10iTeam-D

Orbea Avant M10iTeam-D
  • Color: Black-Grey
  • Color: Blue-Red
  • Color: Jade-Black
  • Color: White-Black
$7,999.00
Please select options
Please call for availability 610-287-7870

Details

You knew when you planned the ride it would be a long day - a route stacked with grinding climbs and twisting descents, terrible roads with a good amount of who-knows-what-else thrown in. These rides aren't most people's idea of fun, but they sure are memorable, monumental, challenging. It’s why you keep going. You have another coffee and pull on your shoe covers to hold the weather at bay, it's going to clear out and warm up in a few hours...maybe. Grab your Avant and do a quick check before rolling into the morning mist. No other machine could better help you endure the hours of rough, exhausting conditions ahead. It's going to be a long day - and you relish it.

The Avant frame utilizes Endurance Geometry, born from years of analyzing how ergonomics can help you ride further. Unlike a racing geometry that is focused on aerodynamics, endurance ergonomics result in a bike that is easier to ride and reduces fatigue. Handling is precise and intuitive. Angles and dimensions are considered carefully across a range of sizes to maximize rider comfort. And more comfort means longer rides. In order to increase pedaling efficiency, the headtube, downtube, and chainstays of the Avant are shaped to resist twisting and transmit power to the rear wheel. The Orbea Monocoque Performance (OMP) materials add high modulus and high strength fibers to a standard layup to improve the frame’s stiffness-to-weight ratio. There is no doubt about it, large cross-sections and resistance to flex in the bottom of the frame translate directly to more watts on the road and a sensation that power transfer is instantaneous. The Avant fork uses a shallower, rounded-blade profile and longer fork legs to offer the best combination of elasticity, tire clearance, and torsional stiffness. The increased axle-to-crown height is offset by a shorter headtube to maintain stack measurements and improve aesthetics. Internal cable routing and flat mount disc brake complement the frame's clean lines, while the carefully chosen high-quality components will ensure you keep rolling hour after hour.

- OMP carbon frame and fork
- Shimano Dura-Ace Di2 drivetrain
- DT Swiss ERC 1400 Spline 47 Carbon wheels

Electronic drivetrain systems deliver excellent shifting, easy set up, and solid battery life. Here are some benefits of electronic shifting that you don't want to miss.

Electronic shifting delivers exceptional performance.

Shifting Performance

Electronic shifting systems use powerful servo motors to rapidly shift the chain. Because microprocessors and sensors constantly monitor every aspect of the system, they shift with surgical precision and without chain rub.

Electronic shifting is customizable.

Customization

Many major systems have customizable shifting. Some have the ability to add remote shifters for common riding positions, and some even allow you to change the functions of the shifting buttons.

Electronic shifting is light on the maintenance.

Dependability

Electronic groupsets are responsive and consistent. There are no cables to stretch and wear out, so you get a flawless shift every time. The added bonus is you'll never have to replace a derailleur cable ever again.

Specs

Frame Avant carbon OMP disc, monocoque construction, 1-1/8"–1.5" headtube, BB 386mm, power meter compatible, internal cable routing, EC/DC compatible
Fork Avant OMP carbon disc fork, full carbon steerer, carbon dropouts
Headset FSA Integrated Carbon Cup ACB Bearings
Axles Front: 12 x 100mm
Rear: 12 x 142mm
Wheels/Rims DT ERC 1400 Spline DB 47 Carbon CL TL
Tires Hutchinson Fusion 5 All Season TLR 700 x 25c
Crankset Shimano Dura-Ace 9100
Chainrings 34x50t
Chain Shimano HG 901
Front Derailleur Shimano Dura-Ace 9150 Di2
Rear Derailleur Shimano Dura-Ace 9150 Di2
Cassette/Rear Cogs Shimano Dura-Ace 9100 11-28t 11-Speed
Shifters Shimano R9170
Handlebars FSA Energy Compact
Tape/Grips Velo Anti-Slippery/Shock Proof
Stem FSA Energy
Brakes Shimano R9170 Hydraulic Disc
Saddle Prologo Nago Evo Space Tirox, 141mm
Seat Post FSA SL-K SB20 27.2 x 350mm Di2 compatible

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Black-Grey / 47cm 08434446372353 J10947B2 AVA2434640Y
Black-Grey / 49cm 08434446372407 J10949B2 AVA24581017Y
Black-Grey / 51cm 08434446372452 J10951B2 AVA24238855Y
Black-Grey / 53cm 08434446372506 J10953B2 AVA24192959Y
Black-Grey / 55cm 08434446372551 J10955B2 AVA24762523Y
Black-Grey / 57cm 08434446372605 J10957B2 AVA24526766Y
Black-Grey / 60cm 08434446372650 J10960B2 AVA24668318Y
Blue-Red / 47cm 08434446372377 J10947B4 AVA24209343D
Blue-Red / 49cm 08434446372421 J10949B4 AVA24982654D
Blue-Red / 51cm 08434446372476 J10951B4 AVA24716854D
Blue-Red / 53cm 08434446372520 J10953B4 AVA24350896D
Blue-Red / 55cm 08434446372575 J10955B4 AVA24811172D
Blue-Red / 57cm 08434446372629 J10957B4 AVA24565115D
Blue-Red / 60cm 08434446372674 J10960B4 AVA24347694D
Jade-Black / 47cm 08434446372384 J10947B5 AVA24774558K
Jade-Black / 49cm 08434446372438 J10949B5 AVA24984579K
Jade-Black / 51cm 08434446372483 J10951B5 AVA24234924K
Jade-Black / 53cm 08434446372537 J10953B5 AVA24681564K
Jade-Black / 55cm 08434446372582 J10955B5 AVA24360756K
Jade-Black / 57cm 08434446372636 J10957B5 AVA2482883K
Jade-Black / 60cm 08434446372681 J10960B5 AVA2495656K
White-Black / 47cm 08434446372360 J10947B3 AVA2423591K
White-Black / 49cm 08434446372414 J10949B3 AVA24831176K
White-Black / 51cm 08434446372469 J10951B3 AVA24327871K
White-Black / 53cm 08434446372513 J10953B3 AVA24746352K
White-Black / 55cm 08434446372568 J10955B3 AVA24262725K
White-Black / 57cm 08434446372612 J10957B3 AVA24493399K
White-Black / 60cm 08434446372667 J10960B3 AVA24966719K
MyO - Custom Color / 47cm 08434446372391 J10947CM AVA24885991M
MyO - Custom Color / 49cm 08434446372445 J10949CM AVA24841733M
MyO - Custom Color / 51cm 08434446372490 J10951CM AVA2483957M
MyO - Custom Color / 53cm 08434446372544 J10953CM AVA24283972M
MyO - Custom Color / 55cm 08434446372599 J10955CM AVA2488873M
MyO - Custom Color / 57cm 08434446372643 J10957CM AVA2473311M
MyO - Custom Color / 60cm 08434446372698 J10960CM AVA24460385M
