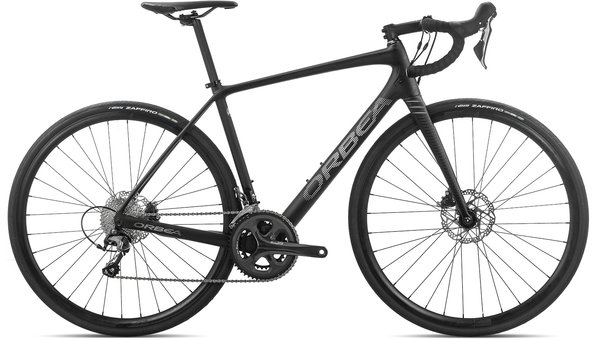

Orbea Avant M40Team-D

Orbea Avant M40Team-D
  • Color: Black/Grey
  • Color: Blue/Black
  • Color: Blue/Red
Please select options


You knew when you planned the ride it would be a long day - a route stacked with grinding climbs and twisting descents, terrible roads with a good amount of who-knows-what-else thrown in. These rides aren’t most people’s idea of fun, but they sure are memorable, monumental, challenging. Is that why you keep going? You suck down another coffee and pull on your shoe covers to hold the weather at bay, it’s going to clear out and warm up in a few hours... Probably. Grab your Avant and do a quick check before rolling into the morning mist. No other machine could better help you endure the hours of rough, exhausting conditions ahead. It’s going to be a long day - and you love it.

Avant uses technologically advanced carbon construction techniques so that you can climb faster and ride longer. Orbea Monocoque Performance (OMP) adds high modulus and high strength fibers to a standard layup to improve stiffness-to-weight ratios. Bladder molding with polyurethane headtube and bottom bracket inserts eliminates wrinkles in critical zones, allowing less carbon to be used while maintaining strength.

The Avant fork uses a shallower, rounded-blade profile and longer fork legs to offer the best combination of elasticity, tire clearance, and torsional stiffness. The increased axle-to-crown height is offset by a shorter headtube to maintain stack measurements and improve aesthetics.

Avant Endurance Geometry is born from years of analyzing how ergonomics can help you ride further. Unlike a racing geometry that is focused on aerodynamics, endurance ergonomics result in a bike that is easier to ride and increases stamina. Handling is precise and intuitive. Angles and dimensions are considered carefully across a range of sizes to maximize rider comfort. And, more comfort means longer rides.

- Orbea carbon monocoque frame
- 10-speed Shimano Tiagra components
- Shimano Tiagra hydraulic disc brakes
- Orbea/Shimano RS470 wheelset


Frame Orbea Avant carbon OMP disc, monocoque construction,tapered 1-1/8-inch – 1,5-inch, BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x P1.5, internal cable routing, EC/DC compatible, SP 27.2mm
Fork Avant OMP carbon disc fork, full carbon steerer, tapered 1-1/8-inch – 1.5-inch, carbon dropouts
Headset FSA 1-1/8 - 1-1/2-inch Integrated Aluminium Cup ACB Bearings
Axles Front: 12x100mm, thread M12xP1.5
Rear: 12x142mm, thread M12xP1.5
Rims/Wheels Orbea wheels, 12mm E-Thru hubset Shimano RS470 28-32H
Tires Vittoria Zaffiro IV 700x28
Crankset Shimano Tiagra 4700
Chainrings 34x50T
Chain KMC X10
Front Derailleur Shimano Tiagra 4700
Rear Derailleur Shimano Tiagra 4700 GS
Cassette/Rear Cogs Shimano Tiagra HG-500 11-34T 10-Speed
Shifters Shimano Tiagra ST-4770
Handlebars OC1 Road Handlebar, reach 80mm, drop 125mm
Tape/Grips Orbea Eva
Stem OC1 Road stem -6º
Brakes Shimano Tiagra 4770 Hydraulic Disc
Saddle Selle Royal Seta RS
Seat Post Alloy 27.2 Offset 20

* Subject to change without notice.


What makes Orbea Avant Unique

Orbea Avant

Part Numbers

Option UPC MPN Store SKU
Black/Grey / 47cm 08434446574375 K10447B2 AVA21829719Y
Black/Grey / 49cm 08434446574412 K10449B2 AVA21897058Y
Black/Grey / 51cm 08434446574450 K10451B2 AVA21210762Y
Black/Grey / 53cm 08434446574498 K10453B2 AVA21441009Y
Black/Grey / 55cm 08434446574535 K10455B2 AVA21732928Y
Black/Grey / 57cm 08434446574573 K10457B2 AVA21413459Y
Black/Grey / 60cm 08434446574610 K10460B2 AVA21975277Y
Blue/Black / 47cm 08434446574405 K10447G8 AVA2119292K
Blue/Black / 49cm 08434446574443 K10449G8 AVA2175063K
Blue/Black / 51cm 08434446574481 K10451G8 AVA21446390K
Blue/Black / 53cm 08434446574528 K10453G8 AVA21474338K
Blue/Black / 55cm 08434446574566 K10455G8 AVA2150396K
Blue/Black / 57cm 08434446574603 K10457G8 AVA21358400K
Blue/Black / 60cm 08434446574641 K10460G8 AVA21126336K
Blue/Red / 47cm 08434446574399 K10447G7 AVA21659496D
Blue/Red / 49cm 08434446574436 K10449G7 AVA21458604D
Blue/Red / 51cm 08434446574474 K10451G7 AVA21474495D
Blue/Red / 53cm 08434446574511 K10453G7 AVA2144257D
Blue/Red / 55cm 08434446574559 K10455G7 AVA21785426D
Blue/Red / 57cm 08434446574597 K10457G7 AVA21234354D
Blue/Red / 60cm 08434446574634 K10460G7 AVA21492950D
