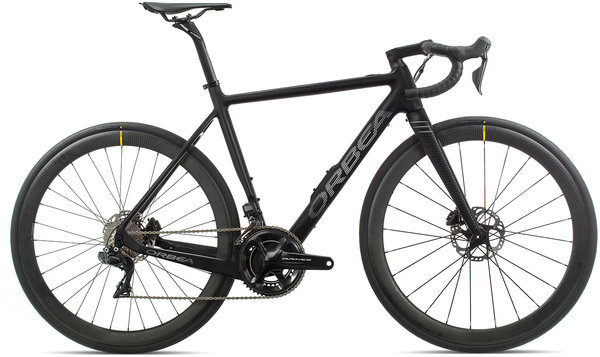

Orbea Gain M10i 20mph

Orbea Gain M10i 20mph
  • Color: Black/Grey
  • Color: Blue/White
  • Color: Orange/Yellow
  • Color: Red/Blue
$8,999.00
Please select options
Please call for availability 610-287-7870

Details

Gain was designed to enhance your ride, not dominate it. The Enough Power and Enough Energy concepts result in an exceptionally lightweight, sporty, and fun-to-ride bike – a machine that heeds the call of the open road. Gain embraces your sweat and hard work and works in unison with your efforts to tick off the miles. System interfaces are modern, integrated, and sleek. There are no bulky components to reduce the riding experience, and distractions have been minimized, so it’s just you, Gain, and the enjoyable hours ahead.

Mode Button
Save space on your handlebar for a GPS if you wish, or ride without clutter. Gain’s control center is an attractive and discreet button on the top tube. With the simple iWoc ONE interface you can power the system on or off, check motor assist level and view the remaining battery charge. Colored LED lighting puts all the information you need right at your fingertips.

App
A smartphone- and smartwatch-compatible app enables deeper control of the iWoc system used by Gain. Ride tracking, GPS route uploading, and other functions are available from your mobile device, making Gain an even more valuable tool.

C.A.N. Integration
Gain doesn’t require a multitude of wires, ports or accessories. The CAN (Controller Area Network) bus port provides a single interface for charging, system diagnosis, or attaching the external backup battery.

Internal Battery
The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest, and most discreet unit. Gain’s Enough Energy concept provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.

Drive System
The heart of Gain, the rear hub motor is the key to Gain’s Enough Power concept. The sophisticated drive system provides enough smooth and reliable assistance at levels designed to enhance your ride, not dominate it. And since the motor is at the hub, you’ll experience drag-free pedaling when Gain is not providing a push.

- Ebikemotion X35 motor
- Orbea Gain Carbon frame
- Gain Carbon fork
- Mavic Cosmic Pro Carbon wheelset
- 11-speed Shimano Dura-Ace components
- Shimano Dura-Ace hydraulic disc brakes

Electronic drivetrain systems deliver excellent shifting, easy set up, and solid battery life. Here are the highlights of today’s electronic shifting systems:

Shifting Performance
Electronic shifting systems use powerful servomotors to rapidly shift the chain. Because microprocessors and sensors constantly monitor every aspect of the system, they shift with precisely and without chain rub.

Customization
Many major systems have customizable shifting. Some have the ability to add remote shifters for common riding positions, and some even allow you to change the functions of the shifting buttons.

Dependability
Electronic groupsets are responsive and consistent. There are no cables to stretch and wear out, so you get a flawless shift every time. The added bonus is you’ll never have to replace a derailleur cable ever again.

Specs

Motor Ebikemotion X35
Battery Ebikemotion 36V/6.9Ah ANT+
Display Ebikemotion iWoc ONE w/OC monochrome ANT+ LEV
Max Assisted Speed 20mph / 32kph
Charger Ebikemotion X35
Frame Orbea Gain Carbon, Monocoque carbon structure
Fork Gain Carbon Flat mount
Headset FSA 1-1/8 - 1-1/2-inch Integrated Carbon Cup ACB Bearings
Axles Front: Orbea Road 12x100mm, thread M12xP1.5
Rear: QR
Rims/Wheels Mavic Cosmic Pro Carbon Disc UST
Tires Hutchinson Fusion 5 All Season TLR 700 x 28
Crankset Shimano Dura-Ace 9100
Chainrings 34x50T
Chain Shimano HG 901
Front Derailleur Shimano Dura-Ace 9150 Di2
Rear Derailleur Shimano Dura-Ace 9150 Di2
Cassette/Rear Cogs Shimano Dura-Ace 9100 11-30T 11-Speed
Shifters Shimano R9170
Handlebars OC2 Road Carbon Handlebar, reach 80mm, drop 125mm
Tape/Grips Orbea Anti-Slippery/Shock Proof
Stem OC2 Road stem -8º
Brakes Shimano Dura-Ace R9170 Hydraulic Disc
Saddle Fizik Antares R5 Versus EVO Regular
Seatpost FSA K-Force SB25 31.6x350mm Di2 compatible

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Black/Grey / X-Small 08434446611490 K39147WU GAI21784568Y
Black/Grey / Small 08434446611544 K39151WU GAI20552409Y
Black/Grey / Medium 08434446611599 K39153WU GAI20129470Y
Black/Grey / Large 08434446611643 K39155WU GAI20808273Y
Black/Grey / X-Large 08434446611698 K39157WU GAI21992013Y
Blue/White / X-Small 08434446611513 K39147WW GAI21886360I
Blue/White / Small 08434446611568 K39151WW GAI20770855I
Blue/White / Medium 08434446611612 K39153WW GAI20173269I
Blue/White / Large 08434446611667 K39155WW GAI20522703I
Blue/White / X-Large 08434446611711 K39157WW GAI21228449I
Orange/Yellow / X-Small 08434446611506 K39147WV GAI21887931L
Orange/Yellow / Small 08434446611551 K39151WV GAI20338341L
Orange/Yellow / Medium 08434446611605 K39153WV GAI20899396L
Orange/Yellow / Large 08434446611650 K39155WV GAI20211075L
Orange/Yellow / X-Large 08434446611704 K39157WV GAI21786658L
Red/Blue / X-Small 08434446611520 K39147WX GAI21424032U
Red/Blue / Small 08434446611575 K39151WX GAI20658495U
Red/Blue / Medium 08434446611629 K39153WX GAI2079135U
Red/Blue / Large 08434446611674 K39155WX GAI20432596U
Red/Blue / X-Large 08434446611728 K39157WX GAI21347709U
