Details

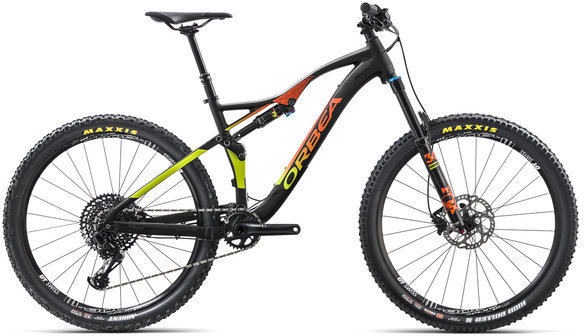

The Occam’s roots run deep in alloy, and it’s still a viable method for building some of the most fun bikes in the world. Meet the Orbea Occam AM H10, a 27.5-inch bike built on a Hydro alloy frame every bit as capable on the trail as its carbon brethren, but at a more value-oriented price point. Equipped with SRAM GX Eagle 12-speed drivetrain, DT Swiss wheels, Fox suspension, and a Raceface cockpit, it’s also just as well-appointed. Occam uses complex technology to bring you a simple experience. You won’t find a dozen bearings or complex linkages driving a strange proprietary shock. Rather, a startlingly light, remarkably stiff and cleverly-engineered piece of technology designed to last a lifetime. Find your fun on the Occam AM H10.
Custom parts packages available
Pedals sold separately
Specs
Frame | Orbea Occam AM 2018 Hydro Triple Butted 150mm travel 27.5 PF |
---|---|
Fork | Fox 34 Float Performace 150 3-Position |
Rear Shock | Fox Float DPS Performance 3-Position Evol custom tune 210x55mm |
Axles | Front: 15x110 Boost, Rear: 12x148 C-Boost |
Rims/Wheels | DT M-1900 Spline TLR 15/110mm CL |
Tires | Maxxis Ardent 2,40" TLR 60 Tpi Exo Dual |
Crankset | SRAM X1-1400 Boost |
Chainrings | 32t |
Rear Derailleur | SRAM GX Eagle |
Cassette/Rear Cogs | SRAM GX XG-1275 Eagle 10-50t 12-Speed |
Shifters | SRAM GX Eagle |
Handlebars | Race Face Aeffect 35 20mm Riser 760mm |
Stem | Race Face Aeffect 35mm interface |
Brakes | Shimano MT500 Hydraulic Disc |
Saddle | Selle Italia XR Trail |
Seat Post | Race Face Aeffect Dropper 31.6x385/125mm |
* Subject to change without notice.
