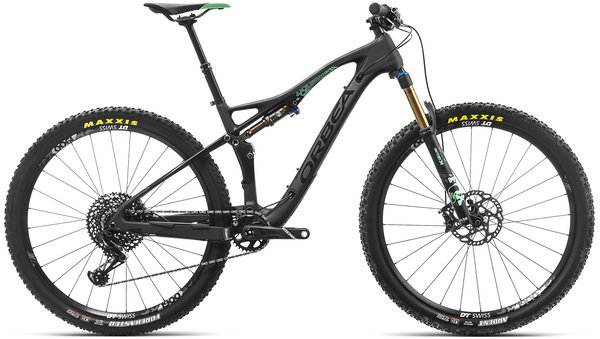

Orbea Occam TR M10

Orbea Occam TR M10
  • Color: Black-Mint
  • Color: Red-Black
This item is currently not available.



The natural progression of mountain biking has led to more aggressive trails. As such, riders want a trail bike with more travel, larger tires, extra stability, and more opportunities for customization. The Orbea Occam checks all the boxes—it’s more aggressive with longer travel, and comes with sturdier tires and wider rims. The frame design utilizes Orbea’s unique Advanced Dynamics development. This process transforms virtual models into real, highly-refined machines—bikes for demanding riders that are faster, more fun to ride, and far beyond ordinary.

The Occam TR features a trail-conquering 130mm of travel and takes advantage of fast-rolling 29-inch wheels. However, Orbea designed the frame to pull Double Duty, packing two bikes into one platform—choose between 27.5-inch plus and 29-inch wheel sizes in the same frame. Taking advantage of the unique properties of carbon fiber, Orbea has done away with the pivot point at the rear axle, saving over 140g. This flexible seat stay design creates an ultralight bike that requires little maintenance and offers stiffness and acceleration like you’ve never felt in a full suspension bike. Consistent and proportional stack and reach measurements guarantee that every rider experiences the same flawless handling. Occam TR is precise and responsive with short 435mm chainstays and the excellent rigidity of a 12mm through-axle system. The Boost standard widens rear axle spacing which increases the space available at the bottom bracket. This results in room for wider tires, a stiffer bottom bracket juncture, and wider hubs for a stronger wheel. Adding up to a svelte, fun, and fast bike, the Occam TR is ready when the trail gets bigger.

- Fox 34 Float Factory FIT4 Kashima-coated fork
- SRAM Descendant Carbon Eagle Dub crankset
- SRAM X01/GX Eagle drivetrain


Frame Orbea Occam TR OMR Carbon UFO 29/27.5+ Boost PF
Fork Fox 34 Float Factory 130 FIT4 3-Pos-Adj Kashima
Headset Acros Alloy 1-1/8–1-1/2" Integrated
Rear Shock Fox Float DPS Factory 3-Position Adjust Evol Kashima custom tune 184x44mm
Axles Front: 15 x 110mm
Rear: 12 x 148mm
Rims/Wheels DT M-1900 Spline 25c TLR CL
Tires Maxxis Forekaster 2.35" 120 TPI TLR Dual Exo
Crankset SRAM Descendant Carbon Eagle Dub Boost
Chainrings 32t
Chain SRAM GX Eagle 12-Speed
Rear Derailleur SRAM X01 Eagle Gold
Cassette/Rear Cogs SRAM GX XG-1275 Eagle 10-50t 12-Speed
Shifters SRAM GX Eagle
Handlebars Race Face Aeffect 35 10mm Rise 760mm
Stem Race Face Ride
Brakes Shimano XT M8000 Hydraulic Disc
Saddle Selle Italia XR Trail
Seat Post Race Face Aeffect Dropper 31.6 x 385/125mm

* Subject to change without notice.


Part Numbers

Option UPC MPN Store SKU
Black-Mint / Small 08434446398520 J26816M7 OCC20929220T
Black-Mint / Medium 08434446398544 J26817M7 OCC20162850T
Black-Mint / Large 08434446398568 J26819M7 OCC20285087T
Black-Mint / X-Large 08434446398582 J26821M7 OCC21176443T
Red-Black / Small 08434446398513 J26816M5 OCC19635400K
Red-Black / Medium 08434446398537 J26817M5 OCC19296843K
Red-Black / Large 08434446398551 J26819M5 OCC19836723K
Red-Black / X-Large 08434446398575 J26821M5 OCC20114230K
