Orbea Optima E40 20mph

Orbea Optima E40 20mph
  • Color: Blue
  • Color: Orange
  • Color: Purple
$2,799.00
Please select options
Please call for availability 610-287-7870

Details

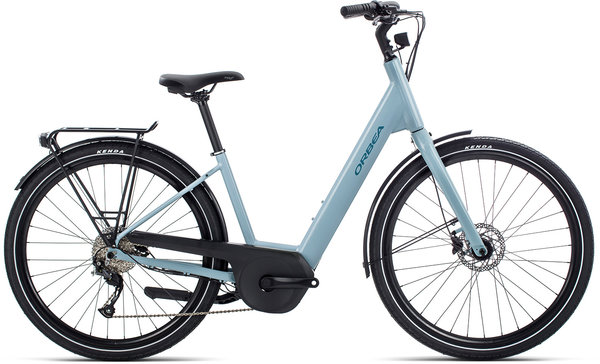

Optima is an apparently “normal” bicycle, but both the architecture and the ergonomics of the new Optima are innovative. It is a bike designed to be used as an electric bicycle from the conceptual design phase. This has meant revamping the product to the point that even its architecture changed.

The heart of Optima, the rear hub motor is the key to Optima’s Enough Power concept. The sophisticated drive system provides enough smooth and reliable assistance at levels designed to enhance your ride, not dominate it. And since the motor is at the hub, you’ll experience drag-free pedaling when Optima is not providing a push.

A compact iWoc TRIO controller adds functionality and interaction to Optima, adding more control over the lighting, battery, and assist level of your bike.

The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest, and most discreet unit. Optimas’s Enough Energy concept provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.

Optima’s smooth and balanced assist requires an advanced sensor. Blending perfectly with our effort to create a sleek and discrete system, the cassette lock ring holds 20 magnets that are detected by the integrated dropout sensor. The system monitors your pedaling input and adjusts power accordingly.

A smartphone and smartwatch-compatible app enables deeper control of the iWoc system used by Optima. Ride tracking, activity, and GPS route uploading and other functions are available from your mobile device, making Optima an even more valuable tool.

- Easy step-through aluminum frame
- 9-speed Shimano Altus components
- Shimano hydraulic disc brakes
- Front and rear dynamo-powered lights
- Fenders, rear rack, and kickstand included

Specs

Motor Ebikemotion X35
Battery Ebikemotion 36V/6.9A ANT+
Display Ebikemotion iWoc TRIO
Max Assisted Speed 20mph / 32kph
Charger Ebikemotion X35
Frame Orbea Optima Hydroformed Alloy, Ebikemotion X35 internal battery
Fork Optima 400mm Alloy Post mount
Headset 1-1/8-inch Semi-Integrated
Rims/Wheels Airline Corsa
Tires Kenda 1172 700x50c
Crankset Prowheel PRA105
Chainrings 42T
Chain Shimano HG53 9-Speed
Rear Derailleur Shimano Altus M2000 SGS Shadow
Cassette/Rear Cogs Sun Race CSM989 11-36T 9-Speed
Shifters Shimano SL-M2010
Handlebars Orbea City Riser Alu 640mm
Stem Orbea TDS-D617
Brakes Shimano MT200 Hydraulic Disc
Pedals VP-856 Black
Saddle Selle Royal Milo Plus DR
Seatpost Alloy 31.6x400mm Offset 0
Accessories & Extras SKS EDGE Alloy fenders, front and rear Spanninga dynamo lights, chainguard, kickstand

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Blue / Small 08434446609541 K37817XH OPT19381693E
Blue / Medium 08434446609572 K37818XH OPT19561241E
Blue / Large 08434446609602 K37820XH OPT19514450E
Orange / Small 08434446609534 K37817XG OPT21890734E
Orange / Medium 08434446609565 K37818XG OPT21476448E
Orange / Large 08434446609596 K37820XG OPT21626032E
Purple / Small 08434446609527 K37817XF OPT23179102Y
Purple / Medium 08434446609558 K37818XF OPT23541419Y
Purple / Large 08434446609589 K37820XF OPT23789315Y
