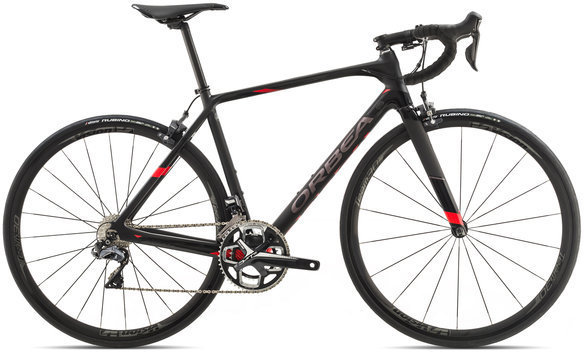

Orbea Orca M20i

Orbea Orca M20i
  • Color: Black/Red
  • Color: Orange
  • Color: White/Black/Red
This item is currently not available.


Electronic shifting is the future, and there’s no reason it shouldn’t be the present. The Orbea Orca M20i is built for the rider who wants the most cutting-edge technology for the best value possible. Reliable Shimano Ultegra R8000 Di2 shifting brings dependability to the weekend group ride, backed up by an FSA cockpit and Vision hoops ready to do double-duty at the weekend crit. Of course, racing bicycles have become minimalist machines – but the more taken away, the greater the importance of what remains. The lower spine of the frame supports the upper members like a suspension bridge in a balance of lightweight rigidity. The downtube and chainstays of the Orca provide stiffness while the top tube and seatstays are tuned to almost nothing. The primary purpose of their slender shapes? To reduce mass. Discover what’s to come today on the Orca M20i.

Electronic drivetrain systems deliver excellent shifting, easy set up, and solid battery life. Here are some benefits of electronic shifting that you don't want to miss.

Electronic shifting delivers exceptional performance.

Shifting Performance

Electronic shifting systems use powerful servo motors to rapidly shift the chain. Because microprocessors and sensors constantly monitor every aspect of the system, they shift with surgical precision and without chain rub.

Electronic shifting is customizable.


Many major systems have customizable shifting. Some have the ability to add remote shifters for common riding positions, and some even allow you to change the functions of the shifting buttons.

Electronic shifting is light on the maintenance.


Electronic groupsets are responsive and consistent. There are no cables to stretch and wear out, so you get a flawless shift every time. The added bonus is you'll never have to replace a derailleur cable ever again.


Frame Orbea Orca carbon OME, monocoque,tapered 1-1/8" - 1,5", PF 86mm, powermeter compatible, brake internal cable routing, EC/DC compatible, 130mm rear spacing, 27,2mm seat tube.
Fork Orca OME carbon fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts.
Headset FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Rims/Wheels Vision Team 30 Comp Clincher
Tires Vittoria Rubino Foldable 700x25 60TPI G+
Crankset FSA Gossamer Pro 34x50t
Chain Fsa Team Issue
Front Derailleur Shimano Ultegra Di2 R8050
Rear Derailleur Shimano Ultegra Di2 R8050 SS
Rear Cogs Shimano 105 5800 11-28t 11-Speed
Shifters Shimano Ultegra R8050 Di2
Handlebars FSA Gossamer Compact
Stem Orbea OC-II
Brakes Shimano Ultegra R8000
Saddle Prologo Kappa RS STN size 143mm
Seatpost Orbea OC-II Carbon 27.2x350mm

* Subject to change without notice.



Part Numbers

Option UPC MPN Store SKU
Black/Red / 47cm 08434446175848 I12047A2 ORC18890216D
Black/Red / 49cm 08434446175879 I12049A2 ORC18962613D
Black/Red / 51cm 08434446175909 I12051A2 ORC18862217D
Black/Red / 53cm 08434446175930 I12053A2 ORC18137842D
Black/Red / 55cm 08434446175961 I12055A2 ORC18120977D
Black/Red / 57cm 08434446175992 I12057A2 ORC18650150D
Black/Red / 60cm 08434446176029 I12060A2 ORC18940072D
Orange / 47cm 08434446175855 I12047A4 ORC1897316E
Orange / 49cm 08434446175886 I12049A4 ORC1842627E
Orange / 51cm 08434446175916 I12051A4 ORC18139126E
Orange / 53cm 08434446175947 I12053A4 ORC18811807E
Orange / 55cm 08434446175978 I12055A4 ORC18640654E
Orange / 57cm 08434446176005 I12057A4 ORC18191530E
Orange / 60cm 08434446176036 I12060A4 ORC18146786E
White/Black/Red / 47cm 08434446175831 I12047A1 ORC18683293D
White/Black/Red / 49cm 08434446175862 I12049A1 ORC1819847D
White/Black/Red / 51cm 08434446175893 I12051A1 ORC18537243D
White/Black/Red / 53cm 08434446175923 I12053A1 ORC18587283D
White/Black/Red / 55cm 08434446175954 I12055A1 ORC18496446D
White/Black/Red / 57cm 08434446175985 I12057A1 ORC18864773D
White/Black/Red / 60cm 08434446176012 I12060A1 ORC18707297D
