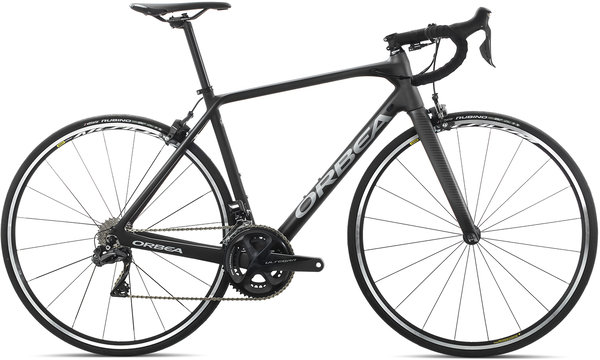

Orbea Orca M20i

Orbea Orca M20i
This item is currently not available.

Details

The Orbea Orca's design uses the most technologically advanced carbon construction to make the most sophisticated frames possible—a complex and painstaking process with results you will appreciate on the road. Its geometry is born from almost 100 years of designing road racing bikes and is the perfect balance of responsiveness and stability. The position is aggressive to maximize body aerodynamics and efficiency, while the handling is precise and intuitive. Angles and dimensions are considered carefully across a range of sizes to put more power to the road with every pedal stroke, and more power means more speed.

In order to best accommodate for external forces on the frame—whether cornering stresses or vibration from rough roads—the Orca uses narrow, thin-walled seatstays to give maximum traction and control over rough surfaces without compromising the bike's overall rigidity. The natural flex patterns created by the carbon layup and minimal bulk of the top tube and seat stays deliver a dynamic, smooth ride that feels like floating over rough roads. The Freeflow fork utilizes a wider opening where the rim and tire pass through, reducing pressure and turbulence which results in a faster bike. Internal routing results in a cleaner aesthetic and has the added benefit of protecting the cables from the elements. With sharp colors that really make it stand out and a carefully curated suite of performance components, the Orca is perfect for the weekend warrior and dedicated racer alike.

- Shimano Ultegra Di2 drivetrain
- Mavic Aksium wheels

Electronic drivetrain systems deliver excellent shifting, easy set up, and solid battery life. Here are some benefits of electronic shifting that you don't want to miss.

Electronic shifting delivers exceptional performance.

Shifting Performance

Electronic shifting systems use powerful servo motors to rapidly shift the chain. Because microprocessors and sensors constantly monitor every aspect of the system, they shift with surgical precision and without chain rub.

Electronic shifting is customizable.

Customization

Many major systems have customizable shifting. Some have the ability to add remote shifters for common riding positions, and some even allow you to change the functions of the shifting buttons.

Electronic shifting is light on the maintenance.

Dependability

Electronic groupsets are responsive and consistent. There are no cables to stretch and wear out, so you get a flawless shift every time. The added bonus is you'll never have to replace a derailleur cable ever again.

Specs

Frame Orbea Orca carbon OME, monocoque, tapered 1-1/8" – 1.5", PF 86mm, power meter compatible, internal routing, EC/DC compatible
Fork Orca OME carbon fork, full carbon steerer, tapered 1-1/8" – 1.5", carbon dropouts
Headset FSA 1-1/8 – 1-1/2" Integrated Aluminium Cup ACB Bearings
Rims/Wheels Mavic Aksium
Tires Vittoria Rubino Foldable 700 x 25c 60TPI G+
Crankset Shimano Ultegra R8000
Chainrings 34x50
Chain Fsa Team Issue
Front Derailleur Shimano Ultegra Di2 R8050
Rear Derailleur Shimano Ultegra Di2 R8050 GS
Cassette/Rear Cogs Shimano 105 R7000 11-28t 11-Speed
Shifters Shimano Ultegra R8050 Di2
Handlebars FSA Gossamer Compact
Tape/Grips Velo Eva
Stem Orbea OC-II
Brakes Shimano Ultegra R8000
Saddle Selle Royal Seta RS
Seat Post Orbea OC-II Carbon 27.2 x 350mm

* Subject to change without notice.
