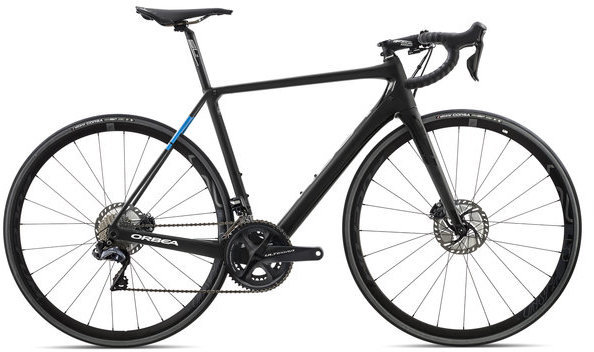

Orbea Orca M20iTeam-D

Orbea Orca M20iTeam-D
  • Color: Black/Blue
  • Color: Black/Green
  • Color: Blue Team
  • Color: Light Blue/Black
  • Color: Red Team
  • Color: White/Black
This item is currently not available.

Details

When rubber meets the road, the first thing that should be on your mind is if you can make it to the finish first, not if your bike can. It’s why the Orbea Orca M20iTeam-D is a key player in your arsenal of speed, designed to waste as little effort as possible to get there first. Shimano’s R8070 hydraulic road stoppers are married to an intuitive Ultegra Di2 drivetrain, which make sure you have all the gears you need to get up and over any climb, while making sure you can carve the descents with confidence on the way back down. With FULCRUM Racing 500 DB wheels hanging from the Orca OMR frame, it’s built to maximize the most of what you’ve brought, and not the other way around. But, racing bicycles have become minimalist machines — but the more taken away, the greater the importance of what remains. The lower spine of the frame supports the upper members like a suspension bridge in a balance of lightweight rigidity. The downtube and chainstays of the Orca provide stiffness while the top tube and seatstays are tuned to almost nothing. The primary purpose of their slender shapes? To reduce mass. Let the M20iTeam-D realize your limits and surprise your competitors.

Electronic drivetrain systems deliver excellent shifting, easy set up, and solid battery life. Here are some benefits of electronic shifting that you don't want to miss.

Electronic shifting delivers exceptional performance.

Shifting Performance

Electronic shifting systems use powerful servo motors to rapidly shift the chain. Because microprocessors and sensors constantly monitor every aspect of the system, they shift with surgical precision and without chain rub.

Electronic shifting is customizable.

Customization

Many major systems have customizable shifting. Some have the ability to add remote shifters for common riding positions, and some even allow you to change the functions of the shifting buttons.

Electronic shifting is light on the maintenance.

Dependability

Electronic groupsets are responsive and consistent. There are no cables to stretch and wear out, so you get a flawless shift every time. The added bonus is you'll never have to replace a derailleur cable ever again.

Specs

Frame Orbea Orca carbon OMR Disc. monocoque construction.tapered 1-1/8" - 1.5".powermeter compaitble, internal cable routing, EC/DC compatible
Fork Orbea Orca OMR Disc carbon fork. full carbon steerer. tapered 1-1/8" - 1.5". carbon dropouts.
Headset FSA 1-1/8" - 1-1/2" Integrated Carbon Cup Light Bearings
Axles Front: 12mm x 100m
Rear: 12mm x 142mm
Rims/Wheels FULCRUM Racing 500 DB
Tires Vittoria Open Corsa Competition G+ 700x25c
Crankset Shimano Ultegra R8000
Chainrings 34x50t
Bottom Bracket BB386mm
Chain Shimano HG701
Front Derailleur Shimano Ultegra Di2 R8050
Rear Derailleur Shimano Ultegra Di2 R8050 SS
Cassette/Rear Cogs Shimano Ultegra R8000 11-28t 11-Speed
Shifters Shimano ST-8070
Handlebars FSA Energy Compact
Tape/Grips Black Anti-Slippery/Shock Proof Bar Tape
Stem FSA Energy
Brake Levers Shimano R875
Brakes Shimano R8070 Hydraulic Disc
Saddle Hard Black Scratch-2 Tirox size 143 mm
Seat Post FSA S-LK Di2 compatible 27,2x400mm

* Subject to change without notice.

Videos

Orbea Orca

Part Numbers

Option UPC MPN Store SKU
Black/Blue / 47cm 08434446192579 I13347J4 ORC22550995U
Black/Blue / 49cm 08434446192647 I13349J4 ORC22917826U
Black/Blue / 51cm 08434446192715 I13351J4 ORC22808972U
Black/Blue / 53cm 08434446192784 I13353J4 ORC22695280U
Black/Blue / 55cm 08434446192852 I13355J4 ORC22242503U
Black/Blue / 57cm 08434446192920 I13357J4 ORC22574896U
Black/Blue / 60cm 08434446192999 I13360J4 ORC22626195U
Black/Green / 47cm 08434446192593 I13347J6 ORC22161094N
Black/Green / 49cm 08434446192661 I13349J6 ORC22974703N
Black/Green / 51cm 08434446192739 I13351J6 ORC22138662N
Black/Green / 53cm 08434446192807 I13353J6 ORC22594092N
Black/Green / 55cm 08434446192876 I13355J6 ORC22464607N
Black/Green / 57cm 08434446192944 I13357J6 ORC22651917N
Black/Green / 60cm 08434446193019 I13360J6 ORC22377218N
Blue Team / 47cm 08434446192616 I13347JG ORC25939973M
Blue Team / 49cm 08434446192685 I13349JG ORC25664735M
Blue Team / 51cm 08434446192753 I13351JG ORC25299771M
Blue Team / 53cm 08434446192821 I13353JG ORC25284232M
Blue Team / 55cm 08434446192890 I13355JG ORC25614077M
Blue Team / 57cm 08434446192968 I13357JG ORC25338692M
Blue Team / 60cm 08434446193033 I13360JG ORC25105904M
Custom / 47cm 08434446192555 I13347CM ORC23655353M
Custom / 49cm 08434446192623 I13349CM ORC23279513M
Custom / 51cm 08434446192692 I13351CM ORC23617891M
Custom / 53cm 08434446192760 I13353CM ORC23774483M
Custom / 55cm 08434446192838 I13355CM ORC23969466M
Custom / 57cm 08434446192906 I13357CM ORC23123157M
Custom / 60cm 08434446192975 I13360CM ORC23825029M
Light Blue/Black / 47cm 08434446192586 I13347J5 ORC2345249K
Light Blue/Black / 49cm 08434446192654 I13349J5 ORC23577998K
Light Blue/Black / 51cm 08434446192722 I13351J5 ORC23978361K
Light Blue/Black / 53cm 08434446192791 I13353J5 ORC23657009K
Light Blue/Black / 55cm 08434446192869 I13355J5 ORC23140112K
Light Blue/Black / 57cm 08434446192937 I13357J5 ORC2389195K
Light Blue/Black / 60cm 08434446193002 I13360J5 ORC23702231K
Red Team / 47cm 08434446192609 I13347JF ORC24327705M
Red Team / 49cm 08434446192678 I13349JF ORC24981831M
Red Team / 51cm 08434446192746 I13351JF ORC24129142M
Red Team / 53cm 08434446192814 I13353JF ORC24420589M
Red Team / 55cm 08434446192883 I13355JF ORC24728990M
Red Team / 57cm 08434446192951 I13357JF ORC24678521M
Red Team / 60cm 08434446193026 I13360JF ORC24562153M
White/Black / 47cm 08434446192562 I13347J3 ORC22365073K
White/Black / 49cm 08434446192630 I13349J3 ORC22550397K
White/Black / 51cm 08434446192708 I13351J3 ORC22184724K
White/Black / 53cm 08434446192777 I13353J3 ORC22845322K
White/Black / 55cm 08434446192845 I13355J3 ORC22813428K
White/Black / 57cm 08434446192913 I13357J3 ORC22994357K
White/Black / 60cm 08434446192982 I13360J3 ORC22856464K
