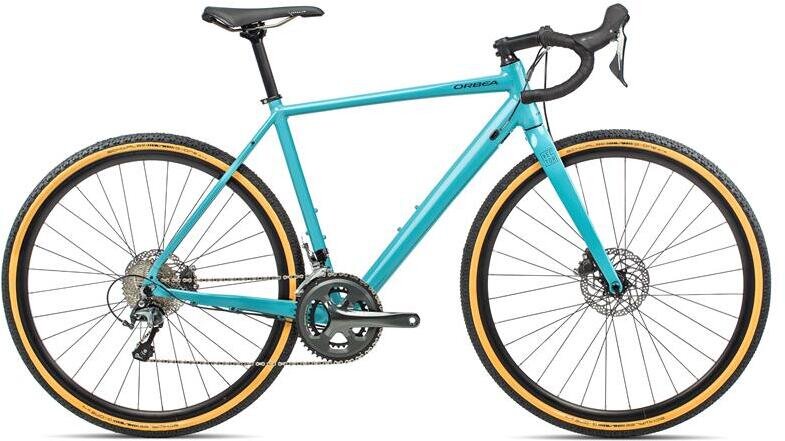

Orbea Vector Drop
Details
ONE BIKE - MANY LIVES.
Vector is at home in the city or on open roads winding through the hills. A blend of low weight and durability usually reserved for more expensive machines, Vector is the perfect tool for doing whatever you like - whether it’s commuting from work or taking a few extra minutes for a detour in the park. Vector is Orbea's new multi-role bike that emphasizes versatility. A companion for every part of your life.
VECTOR IS SAFE
- Disc Only
- Puncture Resistant Tires
- Wheel Security
VECTOR IS DURABLE
- Orbea Lifetime Warranty
- Shimano Hubs & Bearings
- Internal Cable Routing
VECTOR IS ADAPTABLE
- Balanced Sport Geometry
- Adjustable Stem and Flat Bar
- Mudguard & Rack Compatible
VECTOR IS LIGHTWEIGHT
- Shimano Road Groupsets
- Lightweight Alloy Frame and Fork
- 28mm Tires
- High Quality Wheels
| SIZE (MM) | X-SMALL | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|---|
| 1- SEAT TUBE (C-T) | 430 | 480 | 525 | 555 | 580 |
| 2- TOP TUBE (EFF) | 521 | 546 | 559 | 580 | 601 |
| 3- HEAD TUBE | 109 | 127 | 150 | 170 | 200 |
| 4- CHAINSTAY | 435 | 435 | 435 | 435 | 435 |
| 5- BB HEIGHT | 281 | 281 | 283 | 283 | 285 |
| 6- BB DROP | 70 | 70 | 68 | 68 | 66 |
| 7- WHEELBASE | 1021 | 1037 | 1052 | 1063 | 1075 |
| 8- HEAD ANGLE | 71° | 71° | 71° | 71.5° | 72° |
| 9- SEAT ANGLE | 75° | 74° | 74° | 73.5° | 73° |
| 10- STANDOVER | 738 | 768 | 800 | 824 | 852 |
| 11- REACH | 378 | 388 | 395 | 405 | 410 |
| 12- STACK | 535 | 552 | 571 | 592 | 625 |
| 13- FORK LENGTH | 400 | 400 | 400 | 400 | 400 |
| RAKE | 51 | 51 | 51 | 51 | 51 |
| HEIGHT (CM) | HEIGHT (IN) | SIZE |
|---|---|---|
| 150-160 | 59.1"-63.0" | X-SMALL |
| 160-170 | 63.0"-66.9" | SMALL |
| 170-180 | 66.9"-70.9" | MEDIUM |
| 180-190 | 70.9"-74.8" | LARGE |
| 190-200 | 74.8"-78.7" | X-LARGE |
| SIZE | CRANK | STEM | HANDLEBAR |
|---|---|---|---|
| X-SMALL | 170 | 100 | 420 |
| SMALL | 170 | 100 | 420 |
| MEDIUM | 170 | 100 | 420 |
| LARGE | 172 | 100 | 420 |
| X-LARGE | 175 | 100 | 420 |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
| Frame | Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing, |
|---|---|
| Fork | Speed 400mm Carbon Flat mount |
| Wheels | READY GR 29-700 C |
| Axles | Front Wheel Axle: Safety Lock |
| Tires | Schwalbe G-ONE Bite, 40-622, 700x38C, Performance Line RaceGuard, TLE, ADDIX Classic Skin |
| Crankset | Shimano Tiagra 4700 34x50T |
| Shifters | Shimano Tiagra ST-4770 |
| Front Derailleur | Shimano Tiagra 4700 |
| Rear Derailleur | Shimano Tiagra 4700 GS |
| Cassette/Freewheel | Shimano Tiagra HG-500 11-34T 10-Speed |
| Chain | KMC X10 |
| Brakes | Shimano Tiagra 4770 Hydraulic Disc |
| Stem | OC1 31.8mm interface -7º |
| Headset | VP-Z104PD 1-1/8" Semi-Cartridge |
| Seatpost | Alloy 27.2 Offset 0 |
| Saddle | Selle Royal Asphalt GR |
| Pedals | Sold separately |
* Subject to change without notice.
