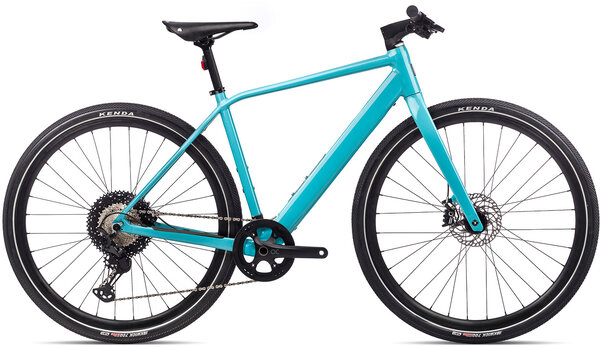

Orbea Vibe H10

Orbea Vibe H10
  • Color: Blue
  • Color: Light Green
  • Color: Metallic Dark Red
  • Color: Night Black
  • Color: Urban Green
$3,499.00
Please select options
Please call for availability 610-287-7870

Details

URBAN LIGHTNESS

In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echoes your sense of style without overshadowing it - a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces.

Vibe is a bike that is lightweight and enjoyable to ride - with a motor, battery, and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.

INTEGRATED LIGHTS
It's like magic - Fully integrated lighting is just one more feature to enhance your ride. Vibe is safer and more functional with head and tail lamps that announce your presence day and night. With full-time running lights and an optional high beam light, Vibe is ready for the road.

IWOC TRIO
Vibe's control center is an attractive and discreet handlebar-mounted switch, putting function at your fingertips without removing your hands from the bar.

- ON, OFF, AND LIGHT CONTROL
- BATTERY & ASSIST LEVEL
- INFORMATION BY RBG LED
- SMART & COMPACT

INTERNAL BATTERY
The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest, and most discreet unit. Vibe's Enough Energy concept provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.

PAS SENSOR
Vibe's smooth and balanced assist requires an advanced sensor. Blending perfectly with our effort to create a sleek and discrete system, the cassette lock ring is replaced with a PAS sensor that monitors your pedaling input and adjusts power accordingly.

- 40 PULSES PER SECOND
- MAGNETIZED LOCK RING SENSOR
- PROPRIETARY ALGORITHM & ELECTRONICS

ICR PLUS
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.

Geometry

Geometry Chart:
SmallMediumLargeX-Large
1 - SEAT TUBE (C-T) 455 490 530 575
2 - TOP TUBE (EFF) 507 530 547 571
3 - HEAD TUBE 109 144 175 210
4 - CHAINSTAY 435 435 435 435
5 - BB HEIGHT 280 280 280 280
6 - BB DROP 76 76 76 76
7 - WHEELBASE 1008 1035 1065 1091
8 - HEAD ANGLE 71º 71.5º 71.5º 72º
9 - SEAT ANGLE 75º 74.5º 74º 74º
10 - STANDOVER 775 809 842 881
11 - REACH 370 390 410 430
12 - STACK 550 585 615 650
13 - FORK LENGTH 410 410 410 410
RAKE 44 44 44 44
WHEEL SIZE 712 712 712 712

Sizes:
SIZECRANKSTEMHANDLEBAR
Small 170 90 700
Medium 170 90 700
Large 170 90 700
X-Large 170 90 700

Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
150-165 59.1"-65.0" Small
165-180 65.0"-70.9" Medium
180-195 70.9"-76.8" Large
195-205 76.8"-80.7" X-Large

Specs

Frame Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Wheels Ready GR
Tires Kenda K1052 700x45C Reflective type TLR
Crankset OC 42t, w/Chainguard
Shifters Shimano Deore M6100
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Chain KMC X12
Brakes Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Handlebars Alloy 31.8mm 12mm Rise 700mm
Tape/Grips Brooks Comfort Cambium 130mm
Stem OC1 31.8mm interface -6º
Headset Acros Alloy 1-1/2" Internal Cable Routing
Seatpost OC 27.2 Offset 0, for integrated light
Saddle Brooks Cambium C15 283x140
Pedals VP-537 Black
Accessories & Extras Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50, REAR LIGHT Lezyne FENDER STVZO seatpost mounting 11 lumens, BELL Knog OI Classic
Motor Ebikemotion X35 Plus 20mph
Battery Ebikemotion 36V/6.9A 248Wh ANT+
Controller/Display Consult other components
Charger Ebikemotion X35

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue / Small 08434446963841 M60846YG
Blue / Medium 08434446963902 M60849YG
Blue / Large 08434446963964 M60853YG
Blue / X-Large 08434446964022 M60858YG
Light Green / Small 08434446963872 M60846YJ
Light Green / Medium 08434446963933 M60849YJ
Light Green / Large 08434446963995 M60853YJ
Light Green / X-Large 08434446964053 M60858YJ
Metallic Dark Red / Small 08434446963858 M60846YH
Metallic Dark Red / Medium 08434446963919 M60849YH
Metallic Dark Red / Large 08434446963971 M60853YH
Metallic Dark Red / X-Large 08434446964039 M60858YH
Night Black / Small 08434446963834 M60846YF
Night Black / Medium 08434446963896 M60849YF
Night Black / Large 08434446963957 M60853YF
Night Black / X-Large 08434446964015 M60858YF
Urban Green / Small 08434446963865 M60846YI
Urban Green / Medium 08434446963926 M60849YI
Urban Green / Large 08434446963988 M60853YI
Urban Green / X-Large 08434446964046 M60858YI
